Model

Q-BOX-E2

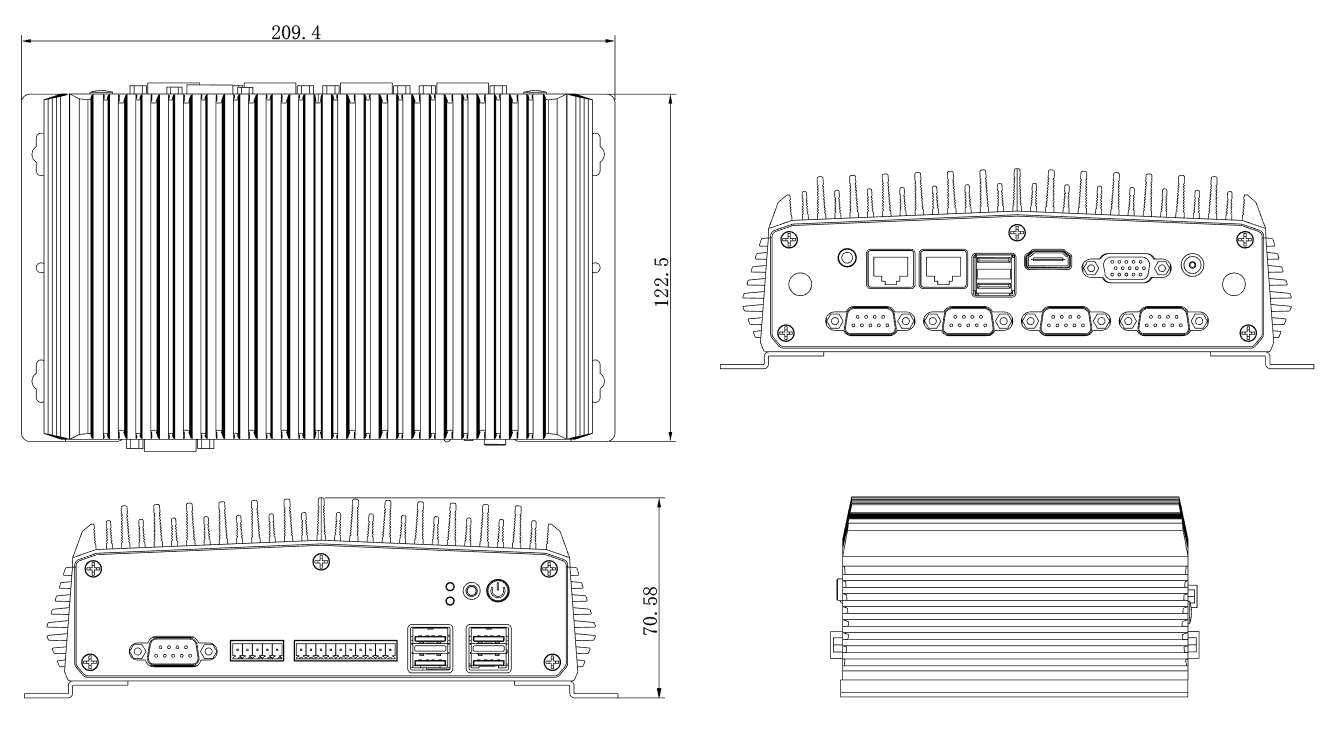

size

209.4*122.5*70.6mm

Processor

Intel Apollo lake?serial N3450/N4200/E3940/N3550 processor ;

Chipset

Intel Apollo lakel single chipset

Ram socket

Onboard 2G\4G?memory，can add one Ram socket , max to be 8GB Ram

Lan Port

Onboard 1 Gigabit LAN

Audio

onboard?HDA ALC662

Storage

1*SATA3.0 1*onboard SSD ?1*Mini-SATA?(onboard SSD or Mini-SATA for alternative）

Color

Sliver

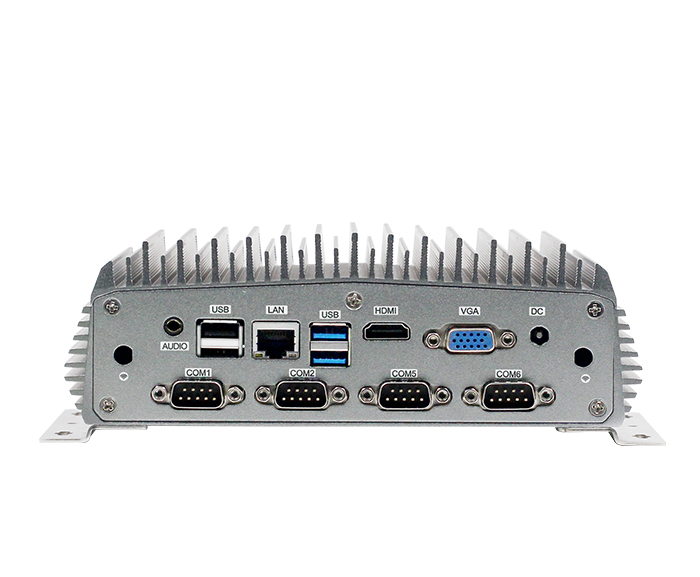

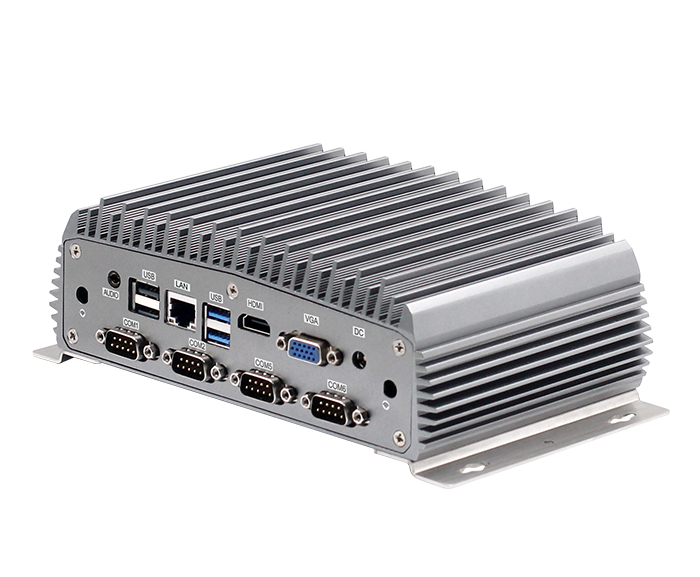

Rear panel interface

1*LAN ?1*HDMI ?1*VGA ?4*COM(RS232) 4*USB2.0?2*USB3.0?1*DC ?1*LINE-OUT?2*WIFI?antenna interface

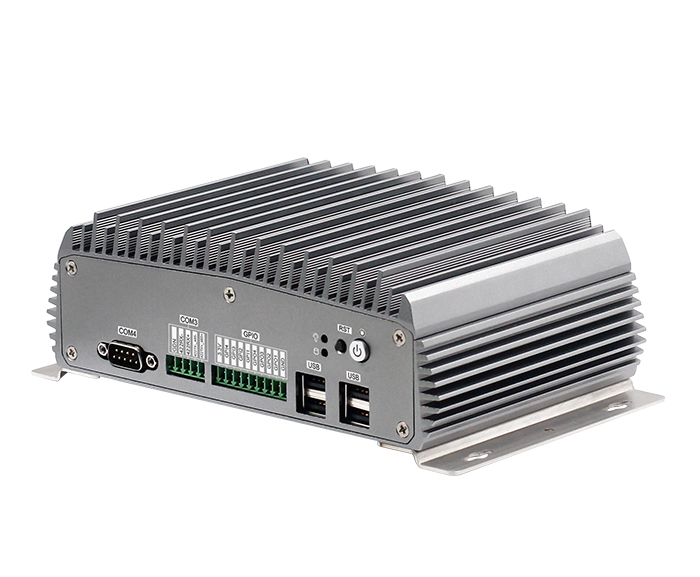

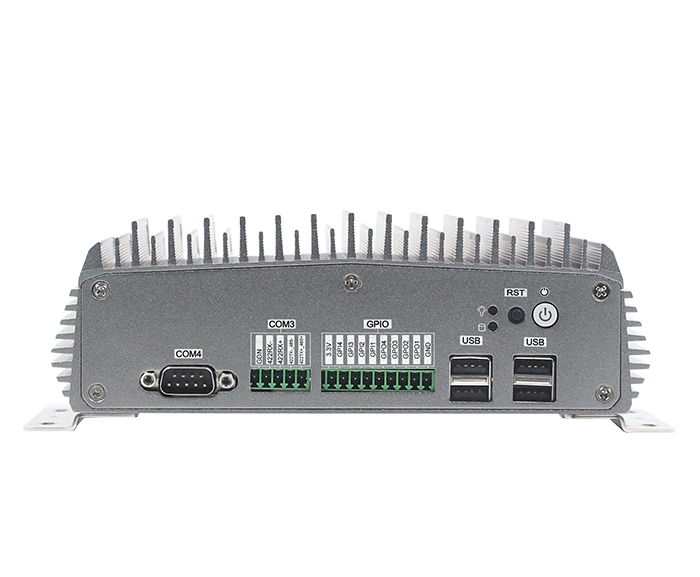

Front panel interface

1* fast switch button 1* power indicator 1* hard disk indicator 4*USB2.0 1*COM(RS2320 1*COM(RS422/485Phoenix terminal interface ) 1*GPIO

Support System

Windows10 Linux（E3940 CPU can support Android OS ）
